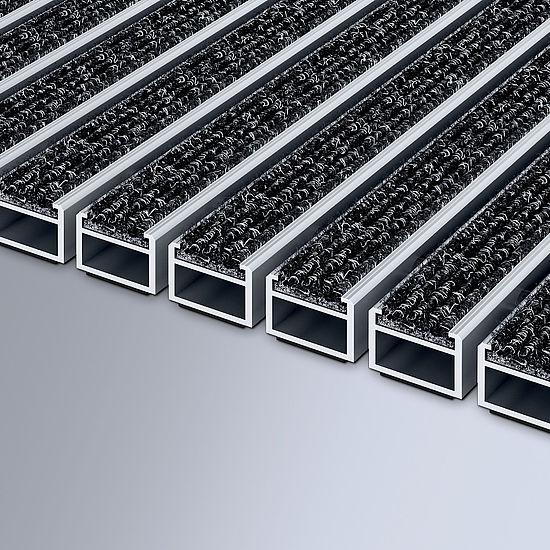

Emco MARSCHALL Original With ribbed carpet insert 522 SR
522SR
The original entrance mat with the successful coarse-fibre ribbed insert is extremely abrasion-resistant and provides maximum dimensional stability. Particularly suitable for collecting fine dirt. Ideal for buildings with normal to heavy loads.
Technical drawing
Colors
Anthracite 200
Light Grey 220
Brown 485
Red 305
Sand 430
Technical data
Approx. height (mm):
22
Roll-over and drive-over capability::
Wheelchairs
Standard profile clearance approx. (mm):
5 mm, rubber spacers
Automatic door systems:
Profile clearance of 3 mm available as an option for revolving door drives, in accordance with EN 16005
Connection:
Plastic-coated stainless steel cable
Max. width/profile length for individual section (mm)::
3000
Depth/walking depth for individual section (mm)::
3000
Weight (kg/m²):
14,7
Mat divisions as per factory standards or customer specifications:
As of a profile length of 3000 mm or a maximum mat weight of 45 kg
Support chassis:
Reinforced support chassis made using rigid aluminium with sound absorbing insulation on the underside
Tread surface:
Recessed, robust, weather-proof, ribbed carpet strips.
Slip resistance:
R 11 slip resistance as per DIN 51130, slip-resistance property of the stainless steel tile: R 10 in accordance with DIN 51130
Flammability:
Insert available on request (surcharge applicable) with fire classification Cfl-s1 according to EN 13501.
Pile material:
100% PP (polypropylene)
Colour fastness to artificial light ISO 105-B02:
good 6
Colour fastness to rubbing ISO 105 X12:
good 4
Colour fastness to water ISO 105 E01:
good 5
Profile width (mm):
30 mm
